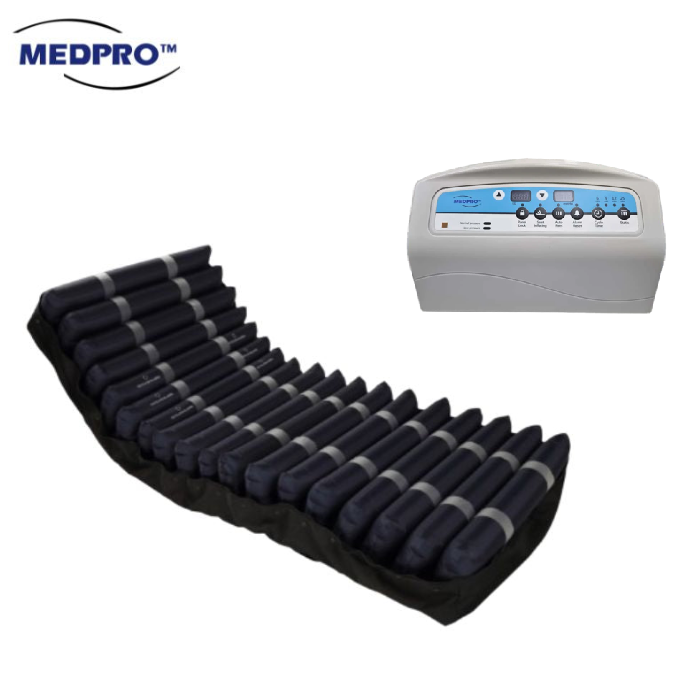

MEDPRO™ SUPERCARE 8" 3 Channels Anti-Decubitus / Pressure Relief Alternating Air Pressure Air Mattress with Digital Mode Pump & CPR Release

SKU: MAT103

The 8" Alternating Air Pressure Mattress provides advanced pressure redistribution therapy to promote blood circulation and prevent further pressure sores in patients with existing pressure ulcers. The Air Bubble Cells inflate and deflate slowly in a pre-set, adjustable cycle to help alleviate pressure on critical areas, reducing the risk of new sores and promoting healing.

GUIDELINES FOR USE

While this mattress assists in pressure sore management, it’s important to continue regular patient repositioning and assessment. Turning the patient at intervals and monitoring high-risk areas should still be an integral part of the treatment plan.

This alternating air mattress is designed for Stage II to IV pressure sores and is intended for both short-term care and domiciliary use, providing ultimate comfort and relief for patients with existing pressure ulcers.

DIFFERENT MODES:

• Alternating Mode: The default setting when powered on, alternating pressure between cells to promote blood flow, reduce trapped heat and humidity, and provide continuous airflow. This mode supports 2 out of 3 air channels at all times, offering better support compared to traditional 2-channel mattresses.

• Static Mode: Pressure is maintained at 65% of the user’s weight, offering stable support for feeding or when the patient is in a sitting position. The mattress does NOT return to alternating mode in this setting.

• Auto Firm Mode: Pressure is set at 100% of the user’s weight, providing firm support for patient transfers from the bed to sitting. The mattress will automatically return to alternating mode after 30 minutes.

All modes are adjustable to the patient’s needs to ensure optimal comfort and pressure relief.

INSTALLATION:

1. Place the 8" air mattress securely on the bed.
2. Attach the compressor pump to the footboard of the bed.
3. Connect the mattress air tubes to the compressor, ensuring there are no kinks for proper airflow.
4. Plug the compressor into the main power supply and turn it on.
5. Set the "Hard" function key to maximum air flow for rapid mattress inflation.
6. Once inflated, adjust the pressure settings to the desired level.

SAFETY GUIDELINES:

• Precaution: Always take care when operating this electrical equipment.
• Unplug: Disconnect from the electrical supply when not in use.
• Humidity: Do not expose the equipment to high humidity environments.
• Cleaning Chemicals: Avoid using corrosive cleaning agents or solvents.
• Relocation: Never attempt to move the equipment while it is connected to power.

CLEANING THE COMPRESSOR (PUMP):

1. Disconnect the compressor from the power supply before cleaning.
2. Use a cloth with mild detergent to wipe the compressor, avoiding alcohol-based cleaning products.
3. Ensure the compressor is completely dry before reconnecting it to the power supply.

√ Load Capacity: 210kg
√ Certificates: ISO13485, CE
√ Silent and energy-saving air pump with long life motor suitable for use 24 hours a day
√ Air pump comes with a hook to the bed rail
√ Mattress material is made of Nylon PVC fabric which is durable, breathable, waterproof and easy to clean
√ Inflated time: Within 20mins
√ Size: Single bed size 80”(L) x34”(W)x 8”(H)

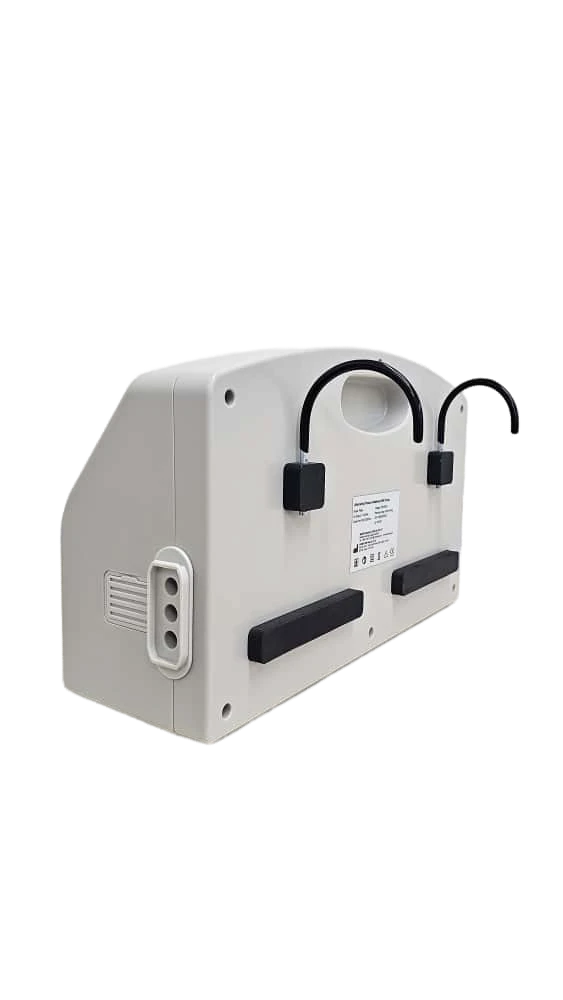

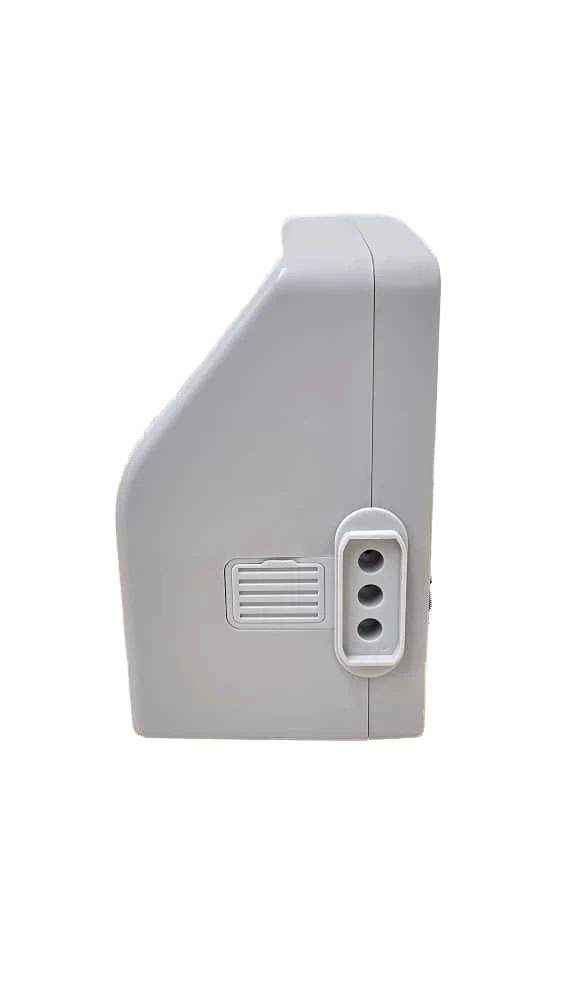

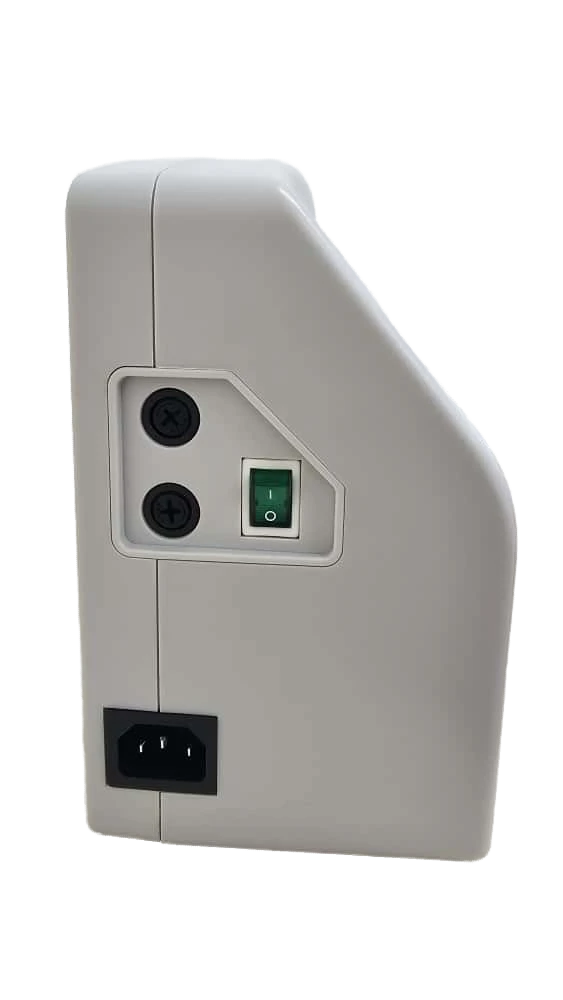

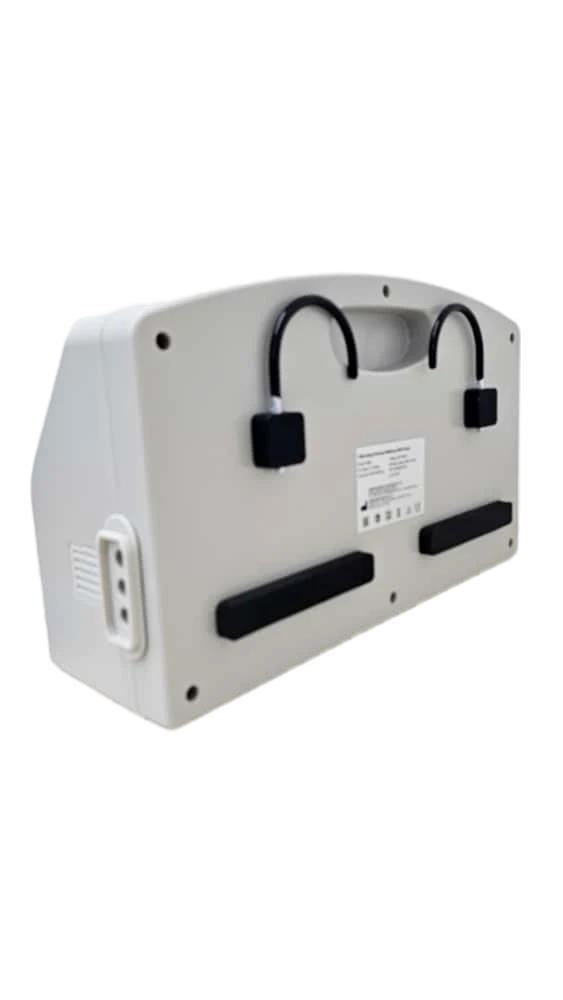

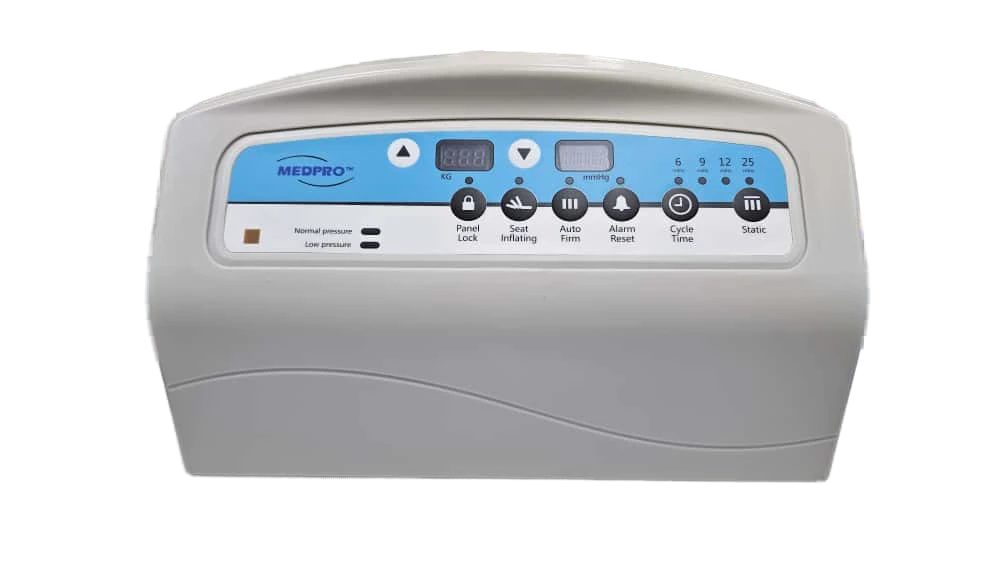

COMPRESSOR PUMP SPECIFICATIONS

Warranty: 12 months against manufacturing defects

Please refer to user manual for detailed specifications and instructions.
